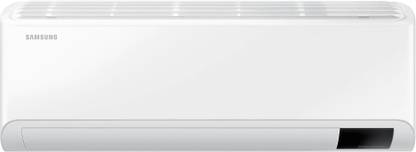

    SAMSUNG 1 Ton 5 Star Split Inverter AC - White

    SAMSUNG 1 Ton 5 Star Split Inverter AC - White  (AR12BY5YAWK, Copper Condenser)

    Price: Not Available
    Currently Unavailable
    1 Year Warranty on Product and 10 Years on CompressorKnow More
    Highlights
    • 1 Ton
    • 5 Star BEE Rating 2021 : For energy savings upto 25% (compared to Non-Inverter 1 Star)
    • Auto Restart: No need to manually reset the settings post power-cut
    • Copper : Energy efficient, best in class cooling with easy maintenance.
    Important Note
    • As a part of the "Energy Labelling Plan" of the Bureau of Energy Efficiency, the star rating of this Air Conditioner from 1st July 2022 onwards will be one star lesser than its rating on 1st Jan 2018 to 30th June 2022.
    Description
    NA
    Read More
    Specifications
    General
    In The Box
    • 1 Indoor Unit, 1 Outdoor Unit, Remote Control, Wall Mounting Kit, User Manual, Warranty Card
    Brand
    • SAMSUNG
    Model Name
    • AR12BY5YAWK
    Type
    • Split
    Capacity in Tons
    • 1 Ton
    Star Rating
    • 5 Star BEE Rating
    BEE Rating Year
    • 2021
    Color
    • White
    Cooling Capacity
    • 3200 W
    Compressor
    • BLDC Compressor
    Dehumidification
    • Yes
    Remote Control
    • Yes
    Refrigerant
    • R32
    Operating Modes
    • Auto Mode, Fast Cool, Good Sleep, Fan Mode, Quiet Mode.
    Condenser Coil
    • Copper
    Dimensions
    Indoor W x H x D
    • 82 cm x 29.9 cm x 21.5 cm
    Indoor Unit Weight
    • 8.9 kg
    Outdoor W x H x D
    • 72 cm x 54.8 cm x 26.5 cm
    Outdoor Unit Weight
    • 25.8 kg
    Other Dimensions
    • Indoor Gross Dimension (W x H x D) (mm): 880 x 290 x 375, Outdoor Gross Dimension (W x H x D) (mm): 852 x 628 x 358, Indoor Gross Weight (kg): 10.4, Outdoor Gross Weight (kg): 30.3
    Performance Features
    Indoor Noise Level
    • High - 42 dB, Low - 21 dB
    ISEER
    • 4.21 W/W
    Body And Design Features
    Other Body and Design Features
    • Plain White Design
    Air Flow & Filter Features
    Other Air Flow Features
    • 2 Way Swing. Air Direction Control (Left/Right) - Manual. Air Direction Control (Up/Down) - Auto.
    Anti-bacteria Filter
    • Yes
    Dust Filter
    • Yes
    Other Filter Features
    • HD Filter, Easy Filter Plus (Anti-Bacteria), Auto Clean (Self Cleaning).
    Convenience Features
    Auto Restart
    • Yes
    Other Convenience Features
    • Convertible 5 in 1 Modes. Cooling Capacity (kW): 3.20. Cooling Capacity (Btu/hr): 10919. Cooling Capacity (Min - Max) (kW): 1 - 4. Cooling Capacity (Min - Max) (Btu/hr): 3412 - 13649. ISEER (W/W): 5.15. EER (Cooling, Btu/hW): 14.37. Outdoor Noise Level: 49 dB. Power Source Phase: 1. Loading Quantity (20/40/40Hft without Pipe): 92/197/232. Max Piping Length (m): 15. Max Piping Height (m): 8. SVC Valve Liquid (ODxL): 6.35. SVC Valve Gas (ODxL): 9.52. Moisture Removal (l/hr): 1.5. Cooling Air Circulation (Cubic Meter Per Minute): 12.4. Refrigerant (Charging, kg): 0.77. Refrigerant (Charging, tCO2e): 0.52 tCO2e. Low Ambient Cooling (DegreeC): 15 - 52. Outdoor Unit (Anti-corrosion Fin): Yes. Air Flow Control Step (Cool/Fan): 5/4. Filter Cleaning Indicator. Indoor Temp. Display. Display On/Off. Beep On/Off. 24-Hour Timer.
    Additional Features
    • 100% Copper Condenser with Durafin Ultra Cooling. Customized Energy Control with a 5 Step Mode: 5 Step Convertible Cooling. Lasting Protection, Optimal Performance: Durafin Ultra. Designed to Cool Faster, Wider and Farther: Fast Cooling. Stable and Durable in Harsh Conditions: Triple Protector Plus. Easy to Clean Filter. Sleep Much Better throughout the Night: Good Sleep. Simply Cleans Itself - Automatically: Auto Clean. Environmentally Friendly Refrigerant: R32 Refrigerant.
    Power Features
    Power Requirement
    • AC 230 V, 50 Hz
    Annual Electricity Consumption
    • 1215.35 Units
    Operating Current
    • 3.6 A
    Services
    Installation Details
    • Standard installation of air-conditioners upto covers only: 1) Drilling of holes into a brick wall for taking out the pipes 2) Fixing a hole sleeve & Cap. 3) Fixing & Connecting indoor and outdoor units using the standard Kit provided by the manufacturer. Not covered as part of standard Installation charges are: 1) Outdoor unit stand - Rs. 750-1000. 2) Extra copper wire - Rs. 600-800 per metre (Two sized copper pipes will be used) 3) Drain pipe extension- Rs. 80- 110 per metre. 4) Wiring extension from the meter to the installation site - Rs. 90 per metre. 5) Vinyl tape roll -Rs. 80-110 6) Dismantling/shifting of the old AC's - Rs. 700-800 7) Closing the holes with White Cement - on Actuals 8) Stabilizer 9) Plumbing and masonry work 10) Power-point/MCB fitting and any other electrical work 11) Carpentry work. 12) Core cutting fabrication and electrical. Note: we highly recommend to use standard & authorized accessories Only. In case customer arranges accessories by his own, Brand Service Engineer might refuse &/or ask for labour charges for fixing these accessories.
    Technician Visit Details
    • Authorized Service Engineer will do the following
    • Provide replacement to the customer in case part / product not repairable (only after replacement request approved)
    • Repair Services
    • Repair/change the defective part
    Uninstallation Details
    • In case of returns
    • Uninstall
    • Pick-up the product.
    • Flipkart's team will visit the customers location
    • Pack
    Warranty
    Warranty Summary
    • 1 Year Warranty on Product and 10 Years on Compressor
    Covered in Warranty
    • All Parts, Excluding Air Filter or Front Grill and Plastic Parts (After Installation). The Warranty Covers Defective Materials and Workmanship from the Date of Purchase. Beyond the First Year of the Warranty Period, Only the Compressor Repair (Excluding Gas Filled Inside the Compressor) Will be Provided Free of Cost for 10 Years from the Date of Purchase. Refrigerant Gas is Having Only One Year Warranty.
    Not Covered in Warranty
    • Parts: Air Filter or Front Grill is Not Covered in the Warranty After Installation. The Warranty does not Cover Installation or Demonstration. Accessories External to the System. Damage Parts. The Product is Not Used According to the Instructions Given in the Instruction Manual. Defects Caused by Improper Use as Determined by the Company Personnel. Modification or Alteration of Any Nature is Made in the Electrical Circuitry or Physical Construction of the Set. Site (Premises Where the Product is Kept) Conditions that do not Confirm to the Recommended Operating Conditions of the Machine. Defects due to Cause Beyond Control Like Lightning, Abnormal Voltage, Acts of God, While in Transit to Service Centers or Purchaser's Residence.
    Warranty Service Type
    • On-site
    Disclaimer
    Disclaimer
    • The manufacturing date can be earlier than the model year.
    Questions and Answers
    Q:Can we convert this ac in different ton capacity as per uses ?
    A:Yes
    Anonymous
    Certified Buyer
    6
    0
    Report Abuse
    Q:Can i get fair skin ???
    A:no
    Durga Ram
    Certified Buyer
    14
    5
    Report Abuse
    Q:is PCB covered by warranty ?
    A:yes
    Anonymous
    Certified Buyer
    7
    2
    Report Abuse
    Q:12w*13L*10h for sufficient 1 ton ac
    A:Yes
    Utkarsh Kumar
    Certified Buyer
    2
    0
    Report Abuse
    Q:Copper pipe included box
    A:I don't get copper tube
    Anonymous
    Certified Buyer
    1
    1
    Report Abuse
    Read other answers
    Q:Does it has hot and cold both function
    A:No only cooling
    Anonymous
    Certified Buyer
    3
    1
    Report Abuse
    Read other answers
    Q:Does it have Pcb warranty for 5 years??
    A:yes
    Anonymous
    Certified Buyer
    4
    2
    Report Abuse
    Q:Stabilizer required for this ac?
    A:not required but use for safety purpose and as a precaution
    Mohit Srivastava
    Certified Buyer
    1
    0
    Report Abuse
    Read other answers
    Q:Can i open my order before installing
    A:yes, you can
    Anonymous
    Certified Buyer
    1
    0
    Report Abuse
    Q:Does AC auto cut off on 25-26 degree ?
    A:No it does not
    Anonymous
    Certified Buyer
    0
    0
    Report Abuse
    Read other answers
    All questions+
