Sands Rogowski Coil RC1001 Ammeter

Name: Sands Rogowski Coil RC1001 Ammeter
Brand: Sands
SKU: AMEFNXGRXBP9XR6Y

Price: Not Available

Currently Unavailable

Highlights

Smart Rogowski Coil

Description

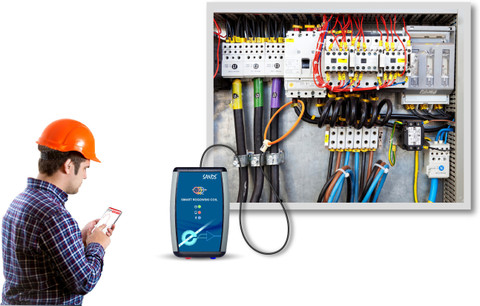

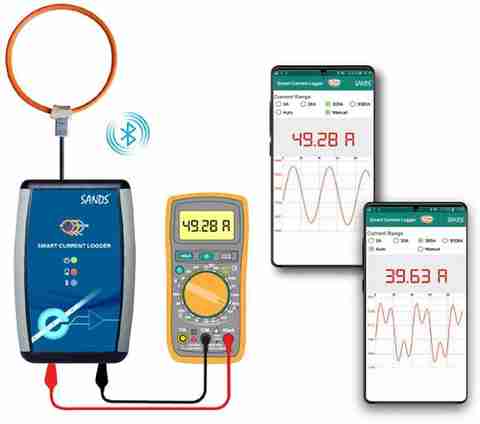

Smart Coil uses 150mm dia Rogowski coil to measure the AC current non-intrusively on any AC line. Rogowski coils are flexible current transformers that are ideal for use when space is limited. The flexible form factor means they can easily fit into tight panels and come in a range of sizes to suit most installations. The accuracy achieved is +1%. It operates with a simple rechargeable 9V alkaline battery.

Specifications

In The Box

1 User Manual

General

Brand	Sands
Model Number	Rogowski Coil RC1001
Type	Digital Ammeters
Power Source	AC
Measuring Range	1-3000A
Measurement Accuracy	+1%
Operating Temperature	10 to 55
Operating Voltage	5v

Additional Features

Key Features

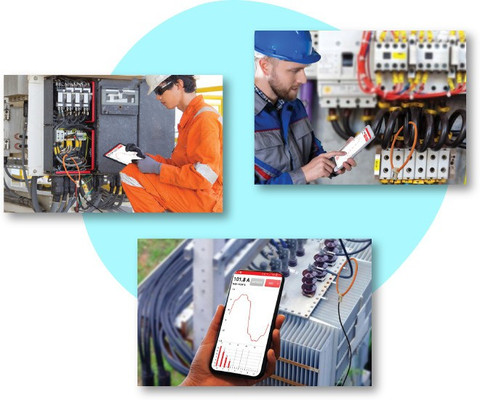

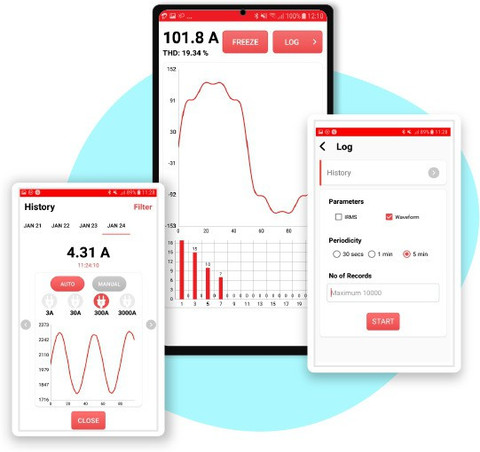

Real Time viewing of Current waveforms on a graphically enriched display. Possibility to zoom and observe the waveforms, analyze harmonics and transients at site due to various loads. A wireless interface gives the user an option to stay at a safe distance from the electrical systems like high voltage points. The App based data logging tool makes the data instantly accessible on the cloud for analysis and archival. It also provides the option to capture the current waveforms at any instance.

Dimensions

Width	78 mm
Length	118 mm
Weight	300 g

Warranty

Domestic Warranty

1 Year
