Specification:

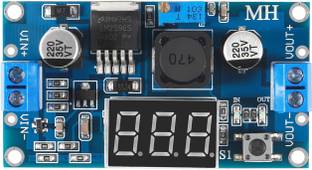

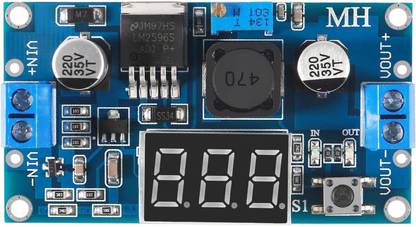

Module Model: LM2596 Buck Converter
Cutting Size: 66.04mm x 35.05mm
Input Voltage: DC 4.2-40V
Output Voltage: 1.25V~37V (continuously adjustable, the input voltage must be 1V higher than the output voltage)
Output Current: 2A (normal and stable), 3A Max
Ripple Frequency: About 150Khz
Ripple Peak: About 100mV
Voltage Meter Error: ± 0.1V
Keep output under 2A (or 15W), and use a heat sink when for a long time working
Wiring connection:
IN+: connect IN+ to your Input Positive
IN-: connect IN- to your Input Negative
Out+: connect OUT+ to your Output Positive
Out-: connect OUT- to your Output Negative
Applications:
Experiment teaching
Temporarily set up power supply in the outdoor
Car(audio, electric fan)power supply
How to calibrate the digital tube
Optional steps for the person who need a highly accurate voltage value
1.Short press the left "ON/OFF" button to start up the digital tube . Long press(>1s, <4 seconds) the left button to shut down the digital tube .
2.Long press(>4 seconds) the left button to enter self-calibration of voltage measurement(calibration range: -0.5-0.5V, factory setting is 0.0).
"IN" indicator lights = input voltage measurement calibration starts.
Then, long press(>2 seconds) the right "Mode" button, "OUT" indicator lights = output voltage measurement calibration starts.
Tap the left / right button to reduce / rise by one unit (since the voltage value of one unit is less than 0.1V,
you need to 1-5 times tap the button continuously, so that the can change by 0.1V)
3.After calibration, long press(>2 seconds) the right "Mode" button to preserve the adjusted value(no loss with outage) and back to normal voltage display.LM2596 buck converter stably output, voltage conversion efficiency is up to 96%. The output voltage is 1.25V-37V (continuously adjustable, the input voltage must be 1V higher than the output voltage),the output current is 2A (normal and stable), the maximum is 3A.
?The digital can be turn on or off, to show input or output voltage. With advanced voltage microprocessor, self calibration, the error±0.1V, the input voltage is DC 0~40V, (Note: To ensure the accuracy of the , please ensure that the input voltage is above 4V).
?NOTE: This is a buck module. The input and output connectors cannot be reversed. The input voltage must be higher than the output voltage. A radiator is required for long-term work above 2A/15W. When using it for the first time, it is necessary to turn the potentiometer counterclockwise more than 10 times.
?Press the button next to to test input voltage or output voltage. Green LED lights on when testing output voltage; red LED lights on when testing input voltage.Press the button for 1 to 4 seconds, would be shut off when releasing your hands; the is very accurate.
?Analog control: using a mini screwdriver to increase or decrease output voltage by adjusting the screw, clockwise to step up voltage and counterclockwise to step down voltage.
