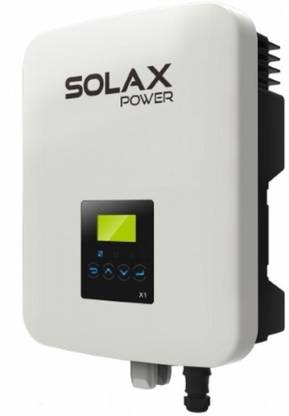

SOLAX X1-3.0T 3 KW Pure Sine Wave Inverter

Price: Not Available

Currently Unavailable

Warranty

5 Year Manufacturing warranty

Highlights

Backup Time: 0 hrs

Description

The Solax vision is to be a world leader in the development, production and distribution of solar inverters. SolaX have developed the Boost range of single phase dual MPPT inverters to be unrivalled in the industry for their quality, reliability and efficiency. The SolaX Boost single phase, dual MPPT inverters boost a wide MPPT voltage range to allow for more energy harvesting and have a maximum input voltage of 580V, with a maximum efficiency of 97.8%. For system information, the optional Pocket WiFi from SolaX enables remote monitoring for the full SolaX inverter range. A simple plug-in device will allow the end-user to view their systems performance anywhere in the world.

Specifications

In The Box

1 inverter, 1 Manual, with Inverter Mounting Accessories

General

Brand	SOLAX
Model Number	X1-3.0T
Battery Included	No
Load Options	5 Fan, 10 CFL, 1 Air Conditioner, 1 Refrigerator, 7 Tubelight, 1 Television
Type	Pure Sine Wave Inverter
Model Name	3 KW
Mode Type	automatic inverter
Fixture Type	Table Top
Solar Power Compatible	Yes
Switch Type	Push

Output Features

Efficiency	97.8 % %
Output Voltage	230V
Output Frequency	50 - 60 Hz
AC Output Types	single phase
Output Power	3000 W

Input Features

Input Voltage	125-580
Input Frequency	50 Hz
Low Cut Input Voltage	110
Low Cut Recovery Input Voltage	125
High Cut Input Voltage	600
High Cut Recovery Input Voltage	580

Battery Features

Replacement Battery	No
Compatible Battery Make	Any Brand

Environmental Features

Storage Temperature	-20 ~ +60
Operating Temperature	-20 ~ +60(derating at 45)
Noise Level	<25
Total Harmonic Distortion	<2

Convenience Features

Emergency Power Off	Yes
Display Type	LED
Audible Indicator Functions	PV overvoltage fault, isolation fault, over temperature fault, DCI fault, RCD/RC fault, mains lost, grid volt fault, grid frequncy fault, consitant fault, ralay fault, eeprom fault, comms lost, bus high, Tz fault
USB Charging Port	No
Protection Against	Over volatage, Over current, RCD protection, Ground fault current, DC isolation impedance
Cooling System	Natural
Other Convenience Features	A simple plug-in device will allow the end-user to view their systems performance anywhere in the world.

Dimensions

Width	34 cm
Height	42 cm
Depth	14.3 cm
Weight	14.6 kg

Additional Features

Certification	G83/2, AS4777.2-2015, VDE4105, EN50438, G59/3, VDE0126, CQC
Corrosion Resistant	Yes

Warranty

Warranty Summary	5 Year Manufacturing warranty
Service Type	Telephonic Technical Support
Covered in Warranty	Complete Inverter
Not Covered in Warranty	Physical Damage is not covered, Due to Inproper Connection defect,
