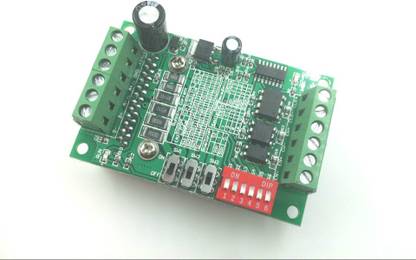

Solnoi Electronics CNC Router TB6560 3A Stepper motor drives CNC stepper motor board 24V Micro Controller Board Electronic Hobby Kit

CNC Router TB6560 3A Stepper motor drives CNC stepper motor board Single axis controller, motor controller board axis control 24V operating voltage DC 10V-35 V. Recommend the use of switching power supply DC24V power supply . using the 6N137 high-speed optical coupling to ensure high speed without losing . using the TB6560AHQ Toshiba new original chip , containing a low pressure shutoff , overheat parking and over current protection circuit to ensure optimum performance. rated maximum output : ± 3 a , peak 3.5 A. for a 42 , 57 up to step 3 a two / four / four / six – wire stepper motor , not suited to exceed 3 a stepper motor . automatic half – streaming capabilities . include : whole step , half step , one-eighth , one-sixteenth , up to 16 segments . dimensions : width 50* 75* tall 35 ( M M)
