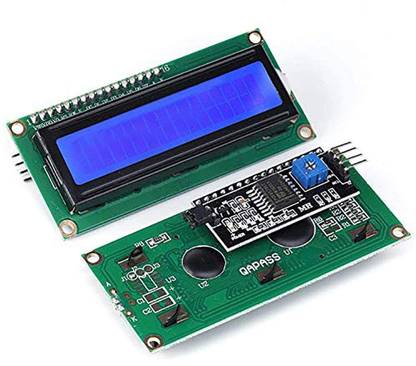

Super Debug 16x2 1602 LCD Display Screen Blue + IIC I2C Module Interface Electronic Components Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
RoHS Compliant
Material: Copper
Weight: 90

Description

Specification: Display: 2-lines x 16-characters Backlight: Blue with white character color LCD controller: HD44780 Pin Definition: VCC, GND,SDL and SCA Contrast Adjust: Potentiometer Backlight Adjust: Jumper Default Address: 0x27 for PCF8574T chip; 0x3F for PCF8574AT chip Working Voltage: 5V Package: 1 pack blue 16x2 1602 lcd display + I2C serial interface

Specifications

In The Box

1 X 16x2 1602 LCD Display Screen Blue + IIC I2C Module Interface

General

Brand	Super Debug
Model Number	16x2 1602 LCD Display Screen Blue + IIC I2C Module Interface
Skillset	Sensory Development
Type	Electronic Components
Minimum Age	3
ROHS Complaint	Yes
Material	Copper
Age Group	16+ Years
Lights	No
Sound	No
Suitable For Gifting	NA

Dimensions

Width	4 cm
Height	3 cm
Weight	90

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Other Power Features	Components: Blue 16x2 1602 lcd display + I2C serial interface backpack; 1602 lcd screen can display 2-lines x 16-characters with built-in industry standard HD44780 equivalent LCD controller., Default Address: 0x27 for PCF8574T chip; 0x3F for PCF8574AT chip; please check which chip you have on i2c interface. (Before you upload the code to the control board, please download the LiquidCrystal_I2C library), Four Pins: VCC, GND,SDL and SCA used for connecting Dupont Line or IIC dedicated cable., Display Function: Can be used to display real time clock, temperature, humidity etc. (A potentiometer is also necessary to adjust the contrast. Working Voltage: Only 5V ), Wide Application: Commonly used in copiers, fax machines, laser printers, industrial test equipment and networking equipment such as routers and storage devices.
