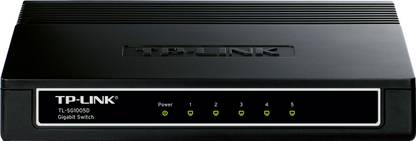

TP-LINK TL-SG1005D 5-Port Gigabit Desktop Switch

TP-LINK TL-SG1005D 5-Port Gigabit Desktop Switch

Price: Not Available
Currently Unavailable
3 Years Domestic WarrantyKnow More
Highlights
  • Type: Unmanaged
  • Number of Ethernet Ports: 5
  • Speed: 10/100/1000 Mbps
Specifications
Network Features
Forward Rate
  • 10 Mbps Port: 14880 Packets/sec, 100 Mbps Port: 148800 Packets/sec, 1000 Mbps Port: 1488000 Packets/sec
Bandwidth
  • 10 Gbps
MAC Address Database
  • 4000
Warranty
Service Type
  • Carry In
Domestic Term
  • 3 Years
Covered in Warranty
  • Manufacturing Defect
Not Covered in Warranty
  • Physical Damage
Warranty Summary
  • 3 Years Domestic Warranty
In The Box
  • 5-Port Gigabit Desktop Switch TL-SG1005D, Power Adapter, User Guide
Dimensions
Mount Type
  • Desktop, Wall Mount
Height
  • 28 mm
Width
  • 165 mm
Depth
  • 108 mm
Network Ports
Number of Ethernet ports
  • 5
Speed
  • 10/100/1000 Mbps
Supported Protocols
Supported Protocols
  • IEEE802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab
System Requirements
Operating System
  • Windows: 98SE, 2000, Vista, 7, MAC OS, UNIX, XP, NT, NetWare, Linux
General
Brand
  • TP-Link
Model
  • 5-Port Gigabit Desktop Switch
Type
  • Unmanaged
Installation
  • Plug and Play
Part
  • TL-SG1005D
Management Protocols
  • CSMA/CD
Key Features
  • Supports Auto MDI / MDIX, Fanless Design, Supports IEEE 802.3x Flow Control, Non-blocking Switching Architecture, Green Technology, Auto-learning and Auto-aging, Plug and Play, 5 x 10/100/1000Mbps RJ45 Port, Supports MAC Address
Additional Features
Additional Features
  • FCC Certification, CE Certification, RoHS Certification, Transfer Method: Store and Forward, 10/100Mbps at Half Duplex, 20/200Mbps at Full Duplex, Frame Filter Rate: 10 Base-T: 14880pps/Port, 100 Base-Tx: 148800pps/Port, 1000 Base-T: 1488000pps/Port, MAC Address Learning: Automatically Learning, Automatically Aging, Auto-Uplink Every Port, Green Technology, Saving Power Upto 70%, Supports Auto MDI / MDIX, Fan Quantity: Fanless, Non-blocking Switching Architecture, 15 K Jumbo Frame, Auto-negotiation Ports, Star Topology, Network Media: 10 Base-T: UTP Category 3, 4, 5 Cable (Maximum 100 m) EIA / TIA-568 100 ohm STP (Maximum 100 m), 100 Base-T: UTP Category 5, 5e Cable (Maximum 100 m) EIA / TIA-568 100 ohm STP (Maximum 100 m), 1000 Base-T: UTP Category 5 Cable (Maximum 100 m) EIA / TIA-568 100 ohm STP (Maximum 100 m)
Operating Conditions
Operational Humidity
  • 10 % to 90 % Non-condensing
Operational Temperature
  • 0DegC - 40DegC
Storage Humidity
  • 5 % to 90 % Non-condensing
Storage Temperature
  • -40DegC - 70DegC
Indicators
LEDs
  • Power, Link/Activity, Speed
Power
Power Adapter Input
  • 50 - 60 Hz, 100 - 240 V AC
