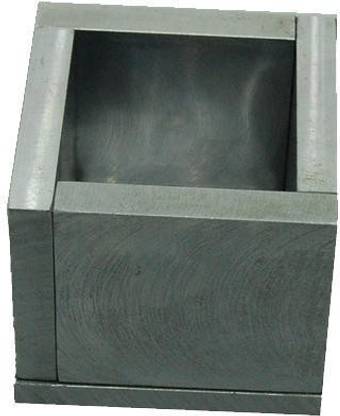

Waltzer India Cast Iron Cube Mold Concrete/Cement Testing Equipment ( 1 PC ) Corbel  (Steel)

The inside faces must be machined plane. The cube mold is normally made in two halves to facilitate removal of the concrete cube without damage. Each mold has a base, which is a separate metal plate, preferably fastened to the mold by clamps or springs. When assembled, all the internal angles of the mold must be right angles. Distance between opposite faces, mm (70.6 ± 0.2), Height of mold, mm(70.6 ± 0.2), Thickness of wall plate, mm(10), materials Side plate & Base plate- Cast iron, Angle between adjacent interior faces and between interior faces and top and bottom plates of mold. 90 ± 0.50
