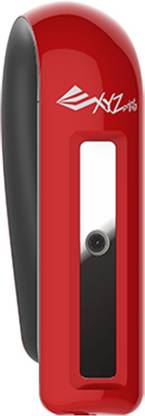

XYZprinting Handheld 3D Scanner

XYZprinting Handheld 3D Scanner  (Multicolor)

Price: Not Available
Currently Unavailable
Warranty
Warranty of the product is applicable if it is registered on the XYZprinting website within 30 days of purchase of the product
Highlights
  • Handheld
  • Supports XYZScan/.stl, .obj
  • Multicolor
  • 400 * 250 * 400 Area Size
  • 1.5mm Scan Resolution
Description
XYZprinting 3D Scanner is fast in both scanning ability and processing speed. It allows for a 3.93 - 27.55 inch operating range with the wide scanning distance of 5.9 - 9.84 inch, and the quality resolution of 640 x 480 at 30FPS. How it Works Hold:-Simply hold it horizontally with your left hand. Scan:-Hold the scanner at 3.93 - 27.55 inch from the target and move the scanner steadily around the target to capture the images in different angles. Save:-Enjoy the digital replicas in just a few minutes. Print:-Bring the replicas to life with your 3D printer!
Read More
Specifications
Sales Package
In The Box
  • Scanner
System Requirements
Operating System
  • Windows 8.1 and above (32 bit and 64 bit), Microsoft.NET Framework 4.0 and above
General
Brand
  • XYZprinting
Model Name
  • Scanner
Series
  • Handheld
Color
  • Multicolor
Media Type supported
  • XYZScan/.stl, .obj
Type
  • Handheld
Scan Area Size
  • 400 * 250 * 400 mm
Scan Method
  • Intel Real Sense Camera
Interface Support
  • USB
Connectivity
USB support
  • USB 3.0
Wireless Support
  • Yes
Additional Features
Key Features
  • Scan Engine – Intel Real sense camera, Minimum Scan Volume(W * D * H)- 1.97 * 1.97 * 1.97 inch, 5 * 5 * 5 cm, Maximum Scan Volume(W * D * H) (Head Mode)- 15.75 * 9.84 * 15.75 inch/40 * 25 * 40 cm, Maximum Scan Volume(W * D * H) (Object Mode)- 23.6 * 23.6 * 11.8 inch/60 * 60 * 30 cm, Scan Resolution - 1.5mm, Depth Image Size - 640 * 480 @30 FPS, Color Image Size- 640 * 480 @30 FPS, Operating Range- 3.93-27.55 inch, (10-70) cm, Dimension- 1.61 * 6.18 * 2.4 inch, (41 * 157 * 61 mm), Output File Types- XYZScan/.stl, .obj, Hardware Requirements- 4th Generation intel Corei5 Process(PC), 4G RAM Basic (8G RAM Recommended)
Dimensions
Weight
  • 0.238 kg
Scanning Resolution
Optical scanning resolution
  • 1.5mm dpi
Be the first to ask about this product
