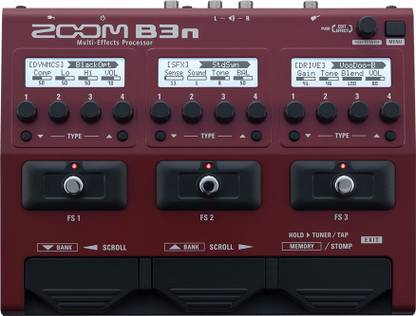

ZOOM B3n Multi-Effects Processor for Bassists Guitar Processor

Effect types: 80 (70 DSP effects, 5 amp emulators, 5 cabinet emulators) Number of simultaneous effects : 7 Number of user banks/patches: 150 Sampling frequency: 44.1 kHz A/D conversion: 24-bit with 128x oversampling D/A conversion : 24-bit with 128x oversampling Signal processing : 32-bit Frequency characteristics : 20 – 20 kHz +1 dB, -3 dB (10 kΩ load) Display: 128 x 32 dot-matrix LCD (x3) INPUTS INPUTS: Standard monaural phone jack Rated input level: -20 dBu Input impedance (line): 470 kΩ AUX IN: Stereo mini jack (3.5 mm) Rated input level: -10 dBu Input impedance (line) : 10 kΩ OUTPUTS Output R: Standard monaural phone jack Maximum output level: Line +5 dBm (with output load impedance of 10 kΩ or more) L/Mono/Phone: Standard stereo phone jack (combined line/headphone) Maximum output level: Line +5 dBm (with output load impedance of 10 kΩ or more) Headphones 15 mW + 15 mW (into 32 Ω load) Equivalent input noise: -119 dBu Noise floor (residual noise) : -100 dBu Control input: Zoom FP02M Power: AC adapter DC9V (center minus plug), 500 mA (ZOOM AD-16) USB: USB MIDI USB Micro-B
