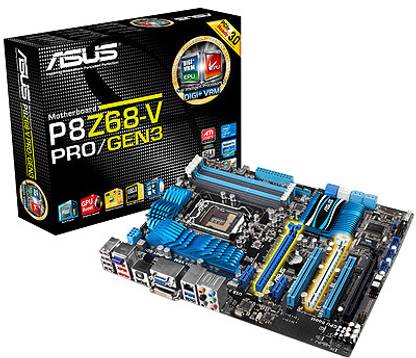

ASUS P8Z68-V PRO/GEN3 LGA 1155Socket ATX Intel Z68 Chipset DDR3 Motherboard for Desktop

Name: ASUS P8Z68-V PRO/GEN3 LGA 1155Socket ATX Intel Z68 Chipset DDR3 Motherboard for Desktop
Brand: ASUS
SKU: MBDD5KDDQWZWQQBA
Rating: 4.9 (7 reviews)

Price: Not Available

Currently Unavailable

Customer contacts 1800-2090-365 for supportKnow More

Highlights

Suitable For Desktop
Intel Z68
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	6
USB 3.0 Ports, Controller	2, ASMedia USB 3.0
eSATA Ports, Controller	JMicron JMB362, 1
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
RJ-45 Ethernet Jacks	1

In The Box

Sales Package

User Manual, ASUS Q-Shield, 2 x SATA 3Gb/s Cable, 2 x SATA 6Gb/s Cable(s),1 x SLI Bridge, 1 x Q-connector (2 in 1), 1 x ASUS USB 3.0 Bracket, Driver Disk, Motherboard

General Features

Overclocking	Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)
Support CDs	Drivers, ASUS Utilities, ASUS Update
Bundled Software	Anti-virus Software (OEM version)
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function
Features	Supports Intel 32 nm CPU, LucidLogix Virtu (Universal Switchable Graphics), Supports Intel 22 nm CPU, UEFI BIOS, Dual Intelligent Processors 2, Intel Smart Response Technology, Quad USB 3.0, GPU Boost, SATA 6 Gbps Support Quad-GPU SLI and Quad-GPU CrossFireX Support
Advanced Technologies	Intel Turbo Boost Technology, Intel Smart Response Technology
Advanced Features	ASUS Dual Intelligent Processors 2 with DIGI+ VRM: ASUS TPU: Auto Tuning, TurboV, GPU Boost, TPU Switch, ASUS EPU: EPU, EPU Switch, ASUS Digital Power Design: Digital 16 Phase Power Design, ASUS DIGI+ VRM Utility, ASUS BT GO: Folder Sync, BT Transfer, Shot and Send, BT to Net, Music Player, Personal Manager, ASUS BT Turbo Remote: Smartphone Interface Supporting iPhone, Android, Windows Mobile, and Symbian Systems, ASUS Exclusive Features: MemOK, AI Suite II, Ai Charger+, Anti-Surge, ASUS UEFI BIOS EZ Mode Featuring Friendly Graphics User Interface, Disk Unlocker, ASUS Quiet Thermal Solution: Stylish Fanless Design Heat-sink Solution, ASUS Fan Xpert, ASUS EZ DIY: ASUS Q-Shield, ASUS O.C. Tuner, ASUS CrashFree BIOS 3, ASUS EZ Flash 2, ASUS Q-Design: ASUS Q-LED, ASUS Q-Slot, ASUS Q-DIMM, ASUS Q-Connector

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Customer contacts 1800-2090-365 for support
Covered in Warranty	During the Limited Warranty period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction, if serial label is removed, broken, if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs, non-Asus products or non-Asus branded peripherals
Warranty Service Type	On Site (Based on the location)

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 2133(O.C) MHz, 1600 MHz, 1333 MHz, 1866(O.C) MHz, 2200(O.C) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Dimensions

305 x 244 mm

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel 2nd Generation Core i3, Intel Celeron, Intel 2nd Generation Core i5, Intel Pentium, Intel 2nd Generation Core i7
Chipset	Intel Z68
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, NVIDIA Quad-GPU SLI, AMD Quad-GPU CrossFireX, LucidLogix Virtu

Storage

SATA 3 Gb/s	Intel Z68 Chipset
SATA 6 Gb/s	Intel Z68 Chipset, Marvell PCIe SATA
RAID Controller	Intel Z68 Chipset
RAID Configurations	0, 1, 5, 10

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	2, 1

General

Brand	ASUS
Model ID	P8Z68-V PRO/GEN3
Designed For	Desktop
Key Features	ATX Form Factor, RAID Controller: Intel Z68, LGA 1155 Socket Type, Maximum 32 GB DDR3, 4 Memory Slots, Dual Channel DIMM Memory, Intel Z68 Chipset

Connectivity

Ethernet Controller	Intel 82579
IEEE 1394a FireWire Controller	VIA 6308P
Number of FireWire Ports	2
Wireless and Bluetooth	Yes

Audio

Audio Codec	Realtek ALC892
Audio Channels	8
Audio Features	High Definition Audio Codec Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, 192 kHz/ 24-bit True BD Lossless Sound, Blu-ray Audio Layer Content Protection, DTS Surround

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	2
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 4 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x TPU Switch, 1 x MemOK button, 1 x 24-pin EATX Power Connector, 1 x EPU Switch, 1 x System Panel, 1 x S/PDIF Out Header

Ratings & Reviews

4.9

★

21 Ratings &

7 Reviews

5★
4★
3★
2★
1★

Blue is good !

Before you read any further, please take a look at the ratings - NOT A SINGLE below 5 star rating, which proves the awesomeness of this board.
I have used this board & at 15k it's a very good deal other than the 26k maximus and 19k deluxe gen3.
Advantages :
#)6 Gb/s SATA - A real pleasure...using the HDD

#)32 GB DDR3 Dual Channel DIMM - forget 32, 8 - 16 GB is luxury !

#)3.0 & 2.0 - The mobo is flooding with USB slots(3.0 as well as 2.0) - Plug as many devices as you like, still short ? U...

The Chemical Soul

Apr, 2012

Permalink

Report Abuse

Whoa! What a mother board!

I was building a computer for my home studio and needed a super fast motherboard. And man! This one is just too good. The GUI bios is awesome. The build quality is just too good, trust me I yanked it a couple of times but didn't budge and works like new. It's has LEDs to show that all of the main components are fine. It has 8 sata ports. Be warned that the 2 maxwell sata3 ports are not Raid capable. This one supports the upcoming ivy bridge CPU as well. Loving it each day more and more.

Phalgun P

Certified Buyer

Feb, 2012

Permalink

Report Abuse

Brilliant Board!

Whatever you can think of.. is there on this motherboard! 6GBps SATA! Bluetooth! So many USB slots(both 2.0 & 3.0)! Supports Ivy bridge! LED indicators are an added bonus to troubleshoot any problems.
Highly Recommended!

Lalit Sharma

Certified Buyer

Jul, 2012

Permalink

Report Abuse

Best motherboard in the price category!!!

Just received the motherboard. As usual flipkart's delivery is awesome. I have paired this mobo with i7 2600K. Overclocking is very stable on this mobo. Also there are plenty of USB and SATA slots. Bluetooth is just awesome, very fast. There are LED indicator for main components, which goes on if the particular device is not working properly. This could help in troubleshooting. I am doing research from three months, so i could say that this is the best motherboard at 16K. Just go for it!!!

Ranjeet Golekar

Certified Buyer

Apr, 2012

Permalink

Report Abuse

Amazing Product!!!

really amazing motherboard...working perfect with my intel i5 2500k...the PC is like flying.

i have never experienced this much speed.

inbuild bluetooth comes very handy for connecting my phone.

i guess its one of the top motherboards available in market.

the bios menu is interactive and its another feather added to asus cap.

long thing short...its a worth product...go for it!!

PS: it does not have ps2 port for keyboard/mouse, better have usb one before installing this beast.

Japneesh Singh

Mar, 2012

Permalink

Report Abuse

AVERAGE

I USE THIS LAST ONE MONTH.MANY REVIEWS SHOWS IT BEST. BUT I HAVE FOUND NO EXTRA QUALITIES EXCEPT INBUILT BLUETOOTH. I HAVE I7 2600K CPU , 8 GB OF GSKILL RIPJAWS RAM AND 2TB SEGATE BARACUDA HD.MY PC TOOK ABOUT 2MINUTES TIME WHEN PC START.COPY SPEED NORMAL.WHY THE PEOPLE WRITE FALSE RIVIEWS ABOUT THE PRODUCTS.THIS MOTHERBOARD HAS NORMAL IN SPEED.

Surender Kumar

Certified Buyer

Jul, 2012

Permalink

Report Abuse

One of the best Motherboard in its class

Its Gigantic and I am loving it!!! Extremely fast delivery service of flipkart made it dream come true so soon.

Must Buy Product.

Recommended. Recommended. Recommended. Recommended. Recommended. Recommended.

Vijendra Verma

Certified Buyer

Jul, 2012

Permalink

Report Abuse

All 7 reviews
